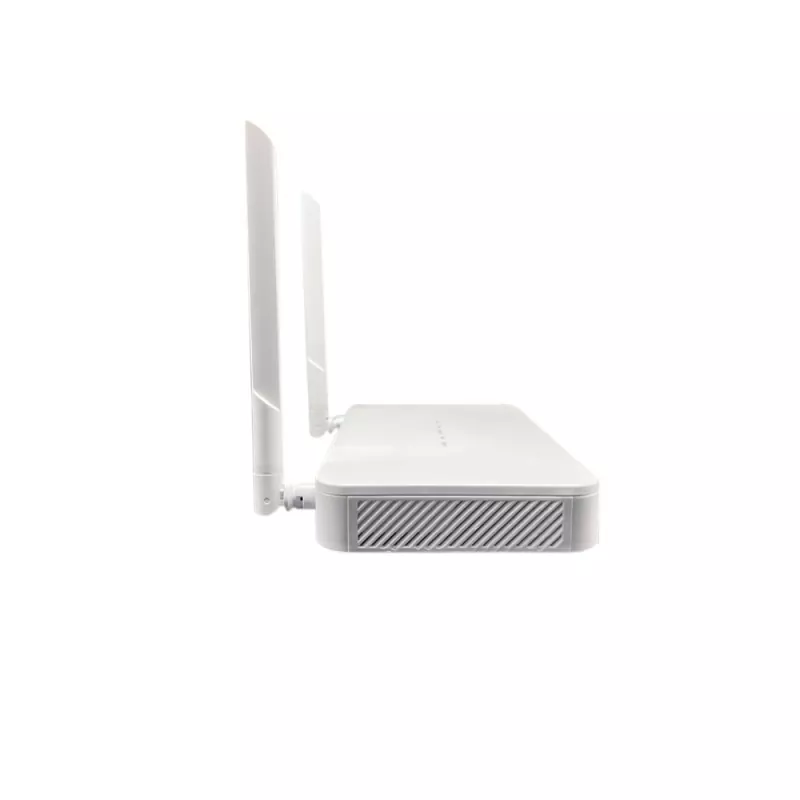

The TENKILOMETERS high quality F670L 5 LIGHT DUAL BAND WIFI5 GPON ONU ONT FTTH is an AC1200 dual band Gigabit Premium triple-play GPON gateway. The modem comes with 1GE&3FE LAN ports, one phone port and next generation multi-stream Wi-Fi, operating simultaneously in 2.4GHz 2×2 over 802.11n and 5GHz 2×2 over 802.11ac. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve the performance. In addition, F670L Supports OMCI function and ENG firmware, ENG indicators, ENG interface description
|
Model |
F670L |
|
GPON Port |
1x, SC/UPC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream |
|
Subscriber interface |
4GE+1pots+1USB+WIFI 2.4G &5G |
|
Modes |
Bridge, Router, AP |
|
LED Indicator |
5 |
|
Wavelength downstream |
1490nm |
|
Upstream Wavelength |
1310nm |
|
Sensitivity |
-28 dBm |
|
Consumption |
9 W |
|
Dimensions |
205 x 120 x 28 mm |
|
Working temperature and humidity |
0°C – 40°C, 5% – 95% |
|
Power |
12 IN DC |
|
GPON properties |
8x T-CONT, 32 GEM ports |
|
Support |
VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack |
|
Management |
Local (WEB), OMCI, TR069 |
● Mature IPv6 Capability
With support for IPv4/IPv6 Dual Stack, the F670L helps operators and end users to achieve future-proof network with smooth evolution.
● Highly Reliable Features
The dual image ensures uninterrupted services during software download or upgrade, thereby enhancing software reliability. The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the POTS port, and 1.5 kV for the Ethernet ports
● Flexible Management Modes
The F670L can be managed by two ways: one is complete OMCI complying with ITU-T G.988, the other is OMCI plus TR-069 complying with BBF TR-142 framework. Service providers can choose their preferred ways to manage the device.
