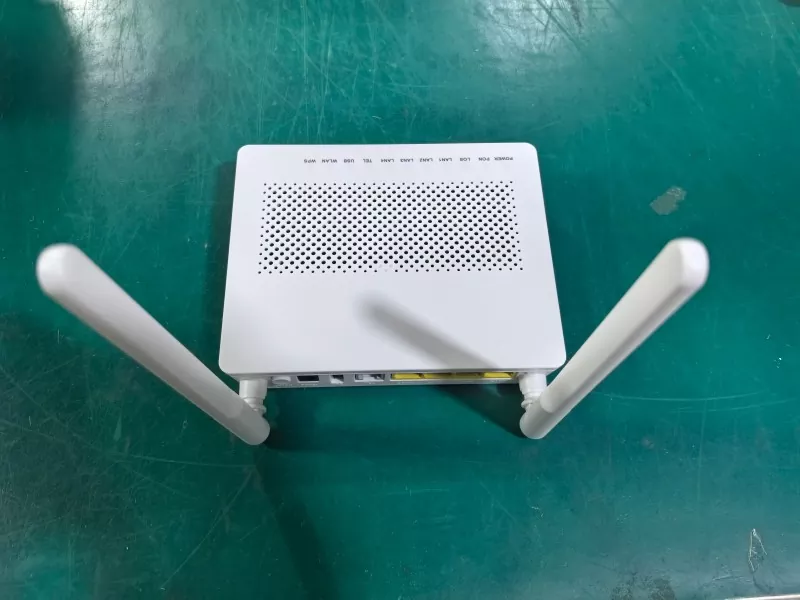

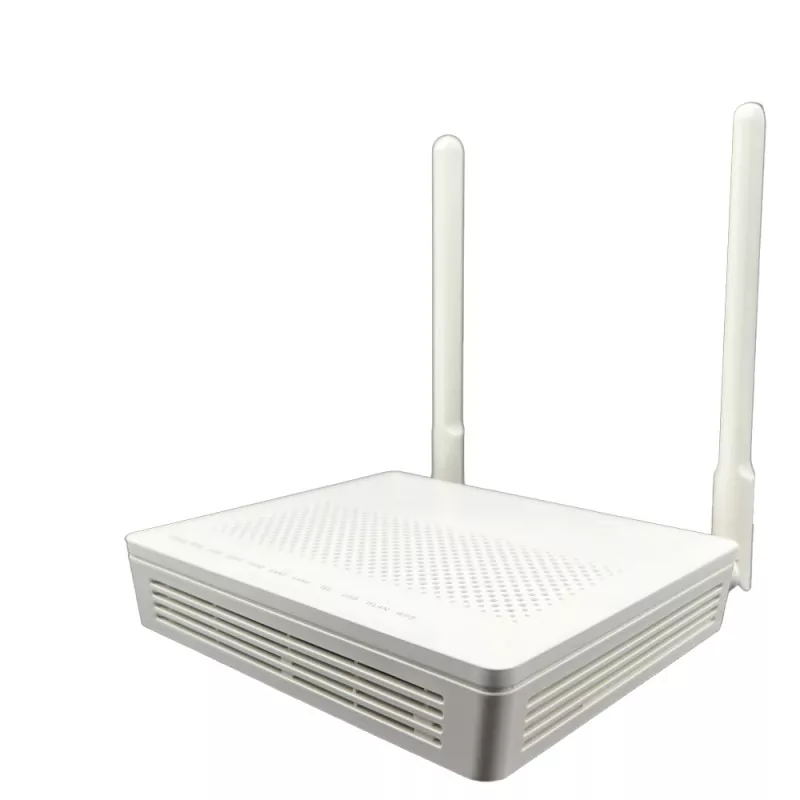

The TENKILOMETERS high quality HG8546M Single Band XPON ONU ONT SMALL is a routing type optical terminal unit for FTTH solution. Through high-performance forwarding capabilities, it effectively guarantees the service experience of data and high-definition video, and gives for FTTH deployment Ideal terminal solutions and future-oriented service support capabilities.
With the emergence of 4K/8K/VR high-definition video services, the FTTH industry has entered a new round of vigorous development. Business requirements for bandwidth are getting higher and higher, and the solution of Gigabit fiber to the home is attracting attention from operators. Huawei’s innovative all-optical access solutions have been applied to more than 88 leading global operators.
At the same time, Huawei’s innovative QuickODN has brought a technological change to the construction of optical fiber infrastructure. The pre-connection technology realizes the plug and play of the optical cable without fusion splicing. The unequal ratio optical splitting technology greatly reduces the amount of optical cable used, realizes the standardization of construction, and provides great help for the improvement of construction efficiency.
|
model |
HG8546M |
|

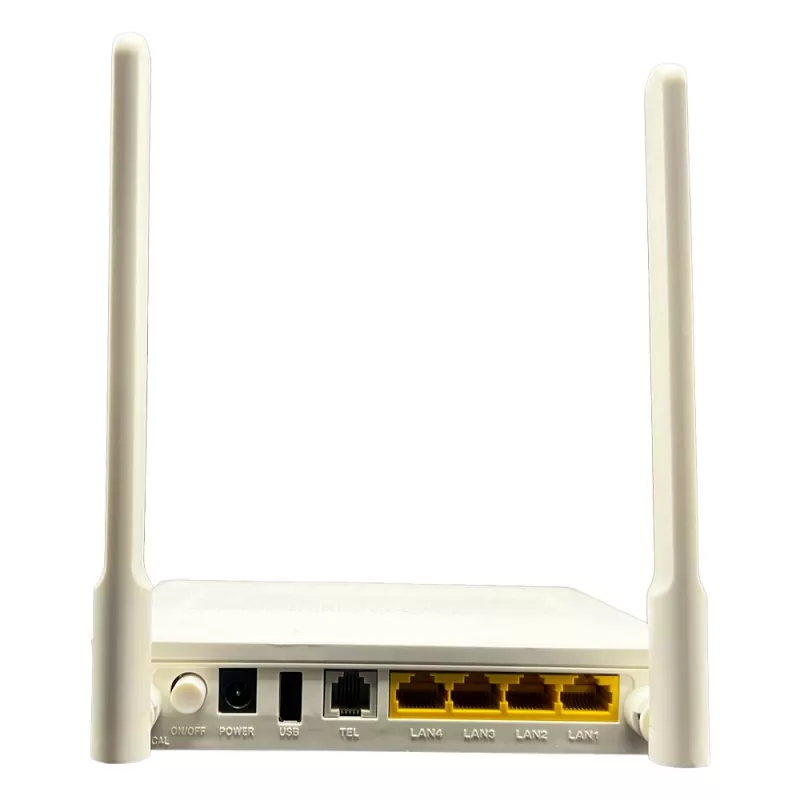

Port |
1 phone+1 Gigabit+2 100M+1iTV+1USB+2.4G Wi-Fi |
|
Weight |
Approx. 180 g |
|
Working temperature |
0°C ～ +40°C |
|
Dimensions (h×w× d) |
52mm x 105mm x 30mm (excluding antenna and foot pad) |
|
Static power |
3.6 W |
|
Optical fiber interface |
SC/UPC |
|
Working environment humidity |
5% RH ～ 95% RH, non-condensing |
|
Power adapter input |
170 ～ 240 V AC, 50/60 Hz |
|

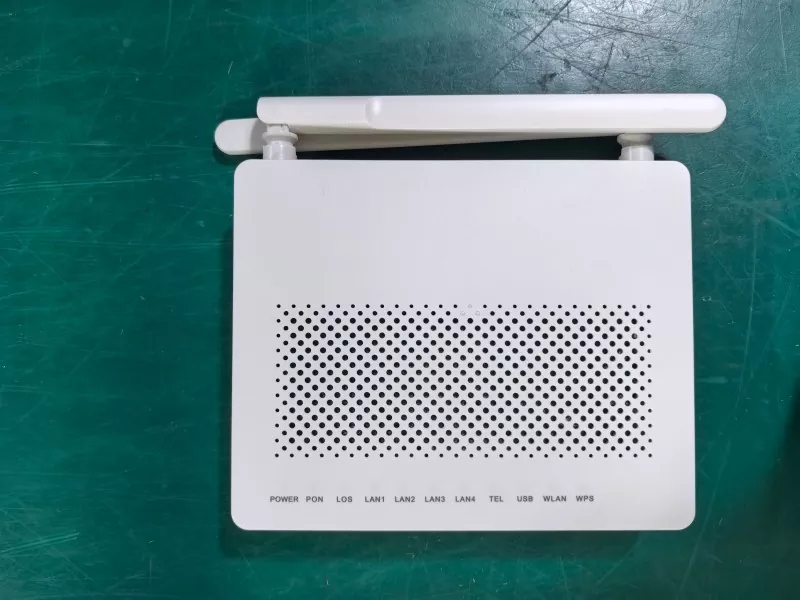

Indicator light |
Power/Fiber/Broadband/Wireless/Storage |
|
Whole machine power supply |
11 ～ 14 V DC, 1A |
|
Maximum power consumption |
12 W |
|
Network side interface |
GPON/EPON |
|
The optical fiber connector |
SC/UPC |
|
Lightning protection specifications |
GE port: common mode 6kV, differential mode 1.5kV |
|
Supporting AC power supply: common mode 6kV, differential mode 6kV, impulse current differential mode 3kA |
|
|
Indicator light |
PWR/PON/LOS/LAN/PoE+/PoE++ |
|
GPON interface |
GPON: Class B+ |
|
Receiving sensitivity: -27dBm |
|
|
Overload optical power GPON: -8dBm/EPON: -3dBm |
|
|
Wavelength: upstream 1310nm, downstream 1490nm |
|
|
Wavelength blocking filter (WBF) supporting G.984.5 protocol |
|
|
Authentication method: SN/Password/LOID(GPON) |
|
|
Two-way FEC (Forward Error orrection) |
|
|
DBA supporting SR and NSR |
|
|
GE electrical interface |
VLAN Tag/Tag stripping based on Ethernet port |
|
1:1 VLAN/N:1 VLAN/VLAN transparent transmission |
|
|
Q in Q VLAN |
|
|
MAC address restrictions |
|
|
MAC address learning |
|
|
Gigabit port supports 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive |
|
|
100Mbit/s port supports 10Mbit/s, 100Mbit/s adaptive |
|
|
2.4G Wi-Fi |
IEEE 802.11 b/g/n |
|
2×2 MIMO |
|
|
Antenna gain:5dBi |
|
|
WMM (Wi-Fi Multi Media) |
|
|
Multiple SSID |
|
|
WPS |
|
|
Air interface rate: 300 Mbit/s |
|
|
Phone port |
The maximum number of phones connected to one port in parallel: 4 REN Support G.711A/u, G.722, G.729a/b codec |
|
Support T.30/T.38/G.711 fax |
|
|
DTMF |
|
|
•Emergency call (SIP protocol) |
● PON characteristics
Class B+ Receiving sensitivity: -27dBm Overload optical power GPON: -8dBm/EPON: -3dBm Wavelength: upstream 1310nm, downstream 1490nm Wavelength blocking filter (WBF) supporting G.984.5 protocol Authentication method: SN/Password/LOID(GPON ) Two-way FEC (Forward Error orrection) DBA supporting SR and NSR
● Ethernet access capability
Ethernet-based VLAN Tag/Tag stripping 1:1 VLAN/N:1 VLAN/VLAN transparent transmission Q in Q VLAN MAC address restriction MAC address learning Gigabit port supports 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive 100 Mega port supports 10Mbit/s, 100Mbit/s adaptive
● Wi-Fi access capability
IEEE 802.11 b/g/n 2×2 MIMO antenna gain: 2dBi WMM (Wi-Fi Multi Media) Multi-SSID WPS air interface rate: 300 Mbit/s
