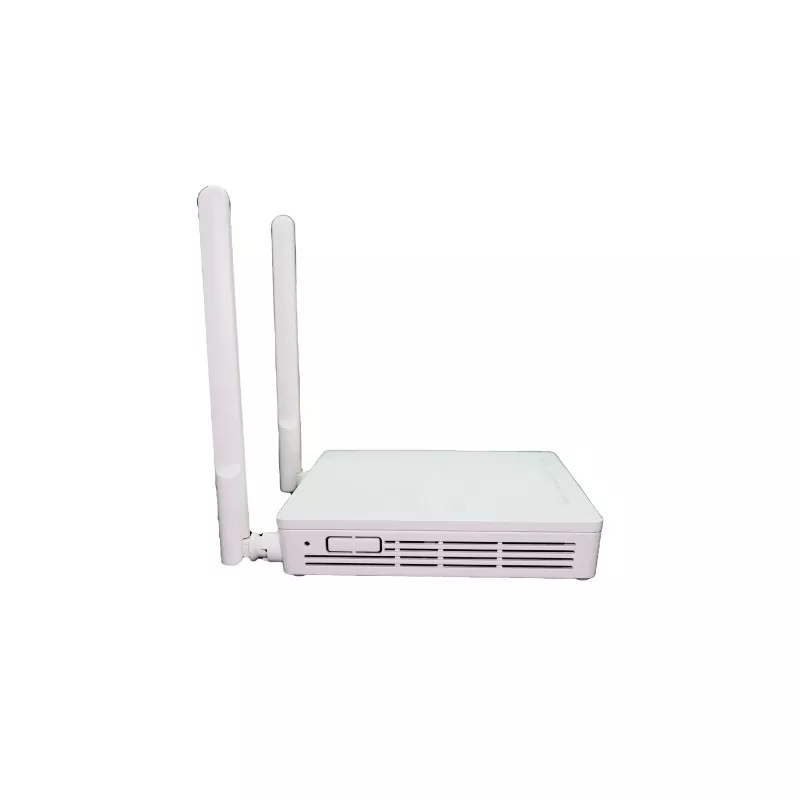

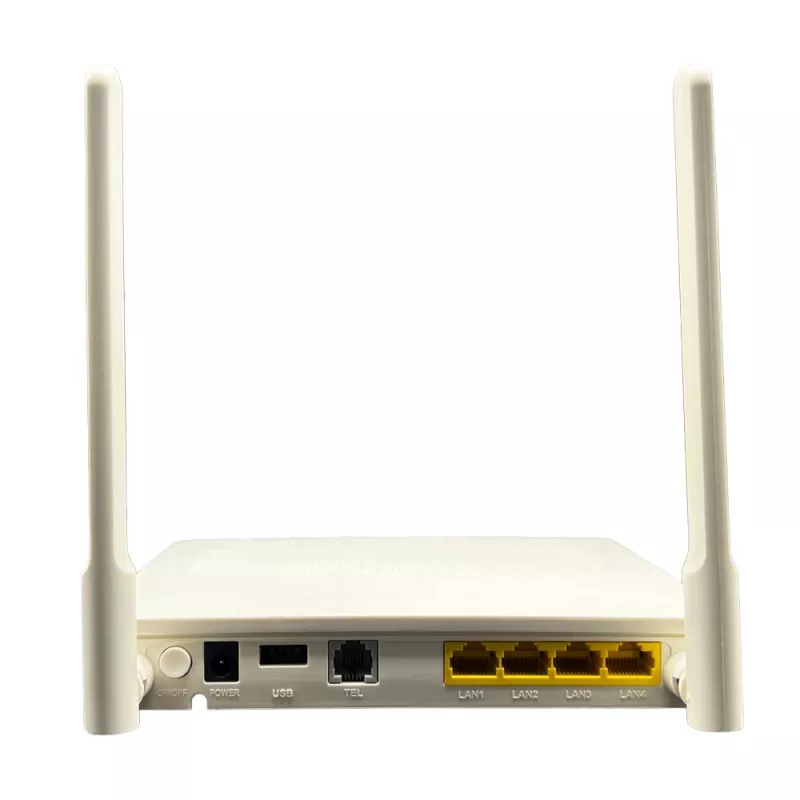

Huawei's HG8546M Single Band GPON ONU ONT 1GE+3FE is an optical network terminal (ONT), which is a high-end home gateway designed for FTTH solutions. The use of GPON SC/UPC technology enables home and SOHO users to access ultra-broadband Internet. The HG8546M offers 1 POTS telephone port, 1 GE gigabit port, 3 Fast Ethernet FE ports and 1 USB port. It allows you to transmit a wireless Wi-Fi network in the 2.4 GHz band, in accordance with the IEEE 802.11b/g/n standards. The maximum wireless transmission throughput is 300 Mbps. The device is equipped with two external antennas, each with a gain of 2 dBi. The H8546M guarantees an ideal terminal solution and the possibility of supporting future services in the field of FTTH implementation. The offered product provides reliable services and works perfectly in both homes and small businesses. The device also includes a DC 12 V 1 A power supply with a European plug (no adapters).
Terminal GPON ONT
Port GPON SC/UPC
1 gigabitowy port Ethernet
3 porty Fast Ethernet
1 port USB
1 port telefoniczny (POTS)
Possibility of transmitting Wi-Fi networks in the 2.4 GHz band
Maximum wireless transmission speed of 300 Mbps
Two external antennas, each with a gain of 2 dBi
| Features/Filters | |
| Number of LAN ports | 4x [10/100M (RJ45)] |
| Standard PON | GPON |
| Wireless Network Standards | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, |
| Port USB | 1x USB |
| Porty VoIP | 1x POTS |
Huawei HG8546M | ONT | WiFi, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s,
| Interfejsy | |
| Port GPON |
1 SC/UPC GPON port, Class B+ Receive sensitivity: -27 dBm Wavelength: US 1310 nm, DS 1490 nm WBF Flexible mapping between GEM and TCONT port G.984.3 Dual-sided FEC SR-DBA and NSR-DBA |
| Port Ethernet |
1 x 10/100/1000 BASE-T (RJ-45) port 3 x 10/100 BASE-T (RJ-45) ports VLAN transparent transmission |
| Port POTS |
Maximum REN: 4 G.711A/u, G.729a/b and G.722 T.30/T.38/G.711 fax DTMF Emergency calls (via SIP protocol) |
| Port USB |
1 USB 2.0 port Ability to create a network drive based on FTP |
| WLAN |
IEEE 802.11b/g/n 2x2 MIMO 2 dBi Antennas WMM Multiple SSIDs WPS |
| Connector type | SC/UPC |
| Physical Characteristics | |
| Dimensions | 176 mm x 138 mm x 28 mm (bez anteny) |
| Libra | <500 g |
| Permissible operating temperature range | Od 0°C do 40°C |
| Permissible air humidity | 5%-95% RH, non-condensing |
| Power input | 100-240 V AC, 50-60 Hz |
| System Power | 11-14 V DC, 1 A |
| Static power consumption | 4.5 W |
| Maximum power consumption | 12 W |
| LEDs | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS |
| Functionality | |
| Smart connection |
Smart Wi-Fi Coverage (V300R015C10 Support) SIP/H.248 Adaptive Any Port, Any Service Parental Control (V300R015C10 Support) |
| Intelligent operation and maintenance |
OMCI Active, Passive ONT Discovery and Isolation Simulation Call/Internal, External Test PPPoE/DHCP Simulation Test WLAN Simulation |
| Multicast |
IGMP v2/v3 snooping IGMP v2 proxy server IGMP v3 proxy server (V300R015C10 support) MLD v1/v2 snooping Wi-Fi multicast services |
| QoS |
Ethernet Port Rate Limit 802.1 Priority S/WRR/SP + WRR Packet Rate Limit |
| O&M |
OMCI/Web UI/TR069 Dual Backup and Restore Software |
| Security |
SPI firewall Anti-Dos attack MAC/IP/URL filtering |
