| Model | Configuration | Dimension/pcs | ||||
| LAN | Telephone | WIFI | PPPOE | FIRMWARE | ||
| F670L | 4GE | 1POTS | 2.4&5.0 | SUPPORT | ENGLISH | 240*200*58mm/0.50kgs |

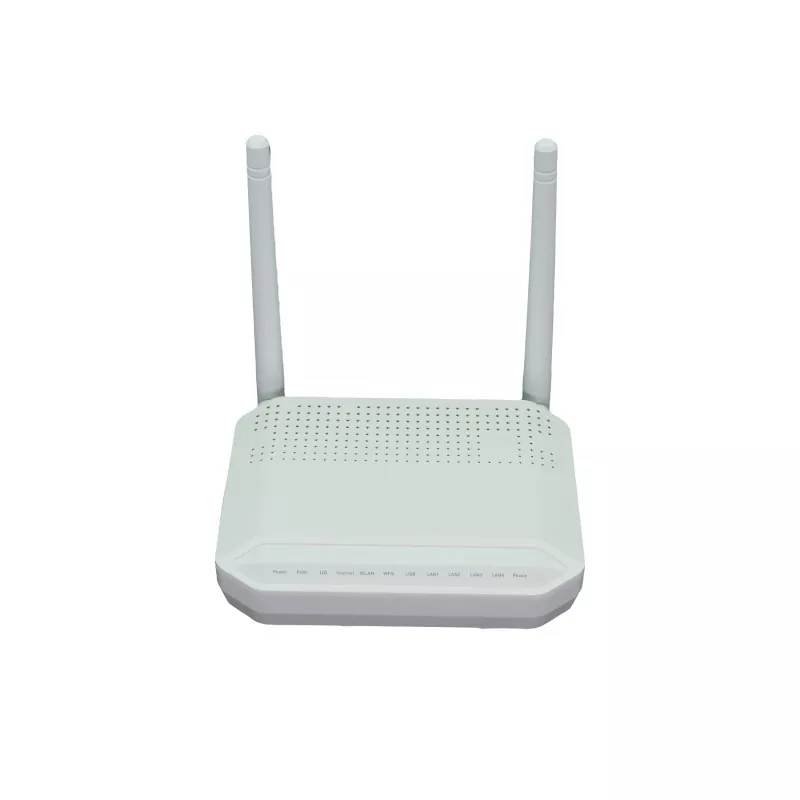

The TENKILOMETERS high quality F670L 12 LIGHT DUAL BAND WIFI5 GPON ONU ONT FTTHH is mainly used in the construction of FTTH (fibre-to-the-home) and FTTO (fiber-to-the-office) scenarios, and this model provides operators with green environmental protection, high reliability, easy operation and maintenance, and meeting various application scenarios. Even gigabit bandwidth brings endless possibilities for users’ home network business.
ZXHN F670L FTTH features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, it provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.
|
Model |
F670L |
|
Fiber port |
4GE+1POT+1USB+WIFI,SC single-mode, |
|
Wavelength |
Tx 1310nm, Rx 1490nm |
|
Fiber interface |
SC/UPC |
|
RX sensitivity |
<-27dBm (1490nm) |
|
WLAN |
IEEE802.11b/g/n,2*2 MIMO, 2.4G/5G WIFI,external antenna(2dBi) |
|
2.4GHz: 2 x 2 MIMO 802.11b/g/n ,5GHz: 2 x 2 MIMO 802.11a/n/ac |
|
|
LAN |
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
|
L2 forwarding capability |
Forwarding packets of any length at wire speed |
|
IPv4 L3 forwarding capability |
2Gbit/s with any length packets in downstream direction |
|
1Gbit/s with any length packets in upstream direction |
|
|
IPv6 L3 forwarding capability |
2Gbit/s with any length packets in downstream direction |
|
1Gbit/s with any length packets in upstream direction |
|
|
Configuration method |
NMS, Web, or TR069 |
|
Voice protocol |
SIP, H.248 |
|
DC power |
Adapter input: 100-240 V AC, 50 – 60 Hz ; |
|
Adapter output: 11 – 14 V DC, 1 A |
|
|
Button |
Reset, power |
|
Power |
≤8W |
|
Operation |
Working temperature: -0-+40℃ |
|
working humidity:5-95%(non-condensation) |
|
|
Dimension |
250*220*65mm(length*width*height) |
|
Net weight |
≤0.8Kg |
GPON features
Class C+ optical module
Security authentication mode: SN,
password or SN+password
Upstream/downstream FEC
Reliability features
Dual systems for software protection
Type B protection and rogue ONT detection
Lithium battery backup and backup battery monitoring
Maintenance features
Local management using Web and remote management using TR069 and OMCI
Optical power monitoring
802.1ag Ethernet OAM
Loop-line test of POTS ports, call emulation and PPPoE dialup emulation
Green energy-saving features
Dynamic power consumption adjustment
With a backup battery, the guaranteed services can be selected flexibly
