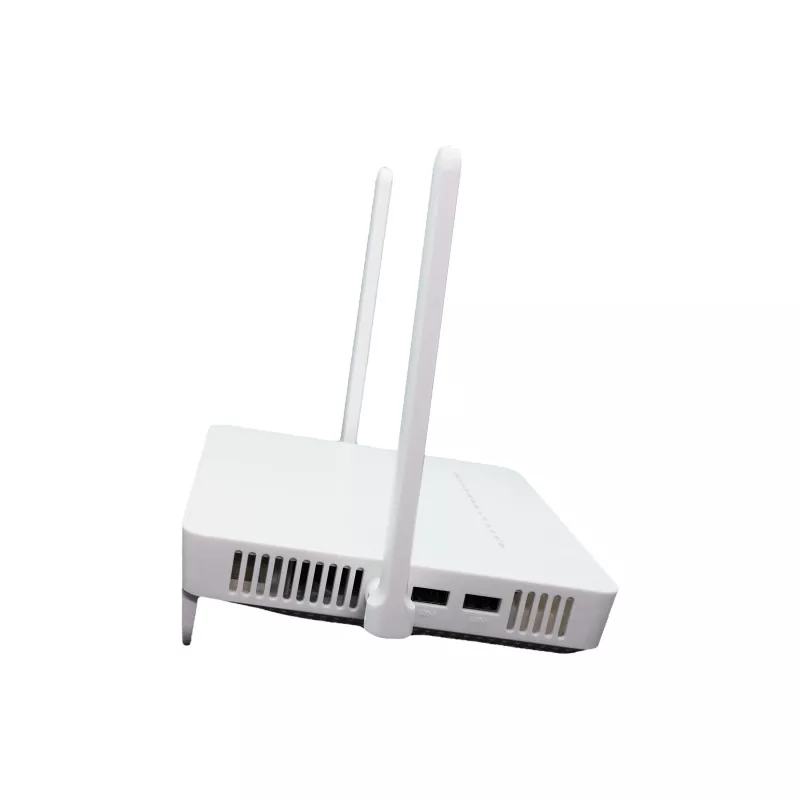

The TENKILOMETERS G-140W-MF Dual Band Wifi5 GPON ONU ONT is high-end home gateway in FTTH (Fiber To The Home) solution provides one POTS port, four GE auto-adapting Ethernet ports, and one Wi-Fi port. By utilizing GPON technology, ensures ultra-broadband access for users.
· G-140W-MF is a Nokia GPON ONT which supports 4 GE, 1 POTS, 2 USB, with 2.4G/5G WiFi
· It supports 802.11ac and IPv4&IPv6
· Antenna Gain: 3dB
· Routing function supported
· Connectivity: It offers one POTS port, four GE auto-adapting Ethernet ports, and one Wi-Fi port, making it versatile for various home and SOHO networking needs.
· High-Performance: Featuring high-performance forwarding capabilities, the G-140W-MF ensures an excellent user experience with VoIP, Internet, and HD video services.
· Future-Oriented: With its support for FTTH deployment, provides a perfect terminal solution and offers future-oriented service supporting capabilities.
|
Specification |
Value |
|
Working environment |
Operating temperature: 0ºC to 40ºC |
|
|
Environment humidity: 5% to 95% (noncondensing) |
|
Typical power consumption |
8 W |
|
Power specifications |
Power adapter input: 100 to 240 V AC, 50–60 Hz |
|
|
System power supply: 12 VDC, 1.5 A |
|
WLAN |
802.11ac |
|
Support IPv4 or IPv6 |
IPv4 and IPv6 |
|
Network-side Port |
GPON |
|
User-side Ports |
1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 2 x USB |
|
Indicators |
POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
|
Dimensions |
(length x width x height) 170 mm x 137 mm x 32mm |
|
Weight |
<1kg |
