Model |
Configuration |
Dimension/pcs |
||||
|
LAN |
Telephone |
Wifi |
PPPOE |
Firmware |
||
|
HG8245Q2 |
4GE |
2pots |
2.4G/5G |
yes |
English |
285*174*70mm/1kgs |

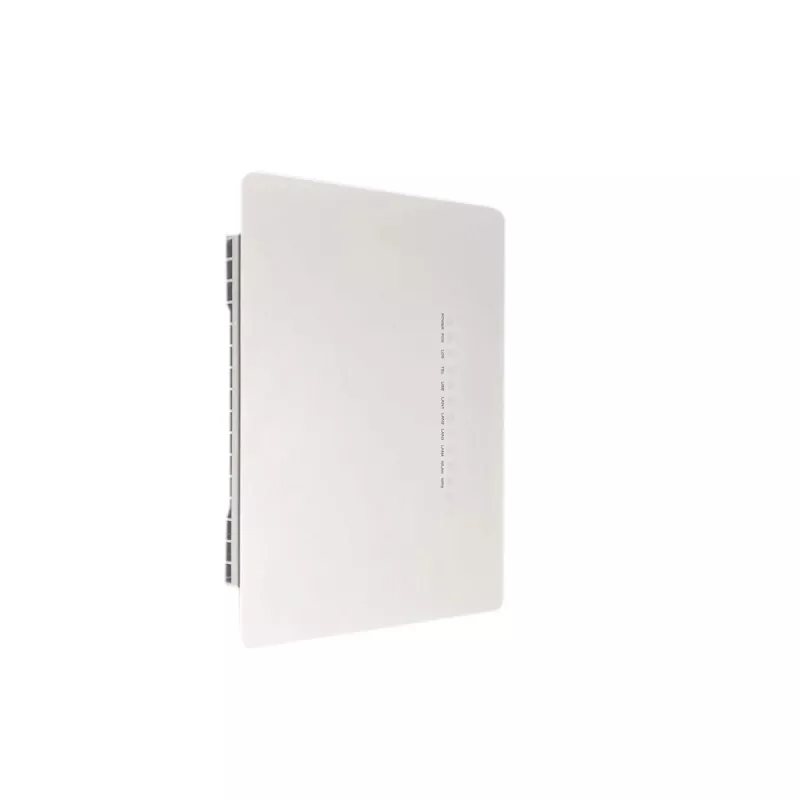

The TENKILOMETERS high quality HG8245Q2 DUAL BAND WIFI5 XPON ONU ONT FTTH is a routing-type ONT in the Huawei all-optical access solution. It uses GPON technology to implement ultra-broadband access for users. This model offers 4 GE+2 POTS+1 USB+2 WiFi(4 GE ports, 2 POTS ports, 1 USB port, 1 2.4G WiFi port, and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data, and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
|
Model |
HG8245Q2 |
|
Weight |
About 1500 g |
|
Operating temperature |
0°C to +40°C |
|
Operating humidity |
5% RH to 95% RH (non-condensing) |
|
Power adapter input |
100–240 V AC, 50/60 Hz |
|
System power supply |
11–14 V DC, 2 A |
|
Static power consumption |
8 W |
|
Maximum power consumption |
20.5 W |
|
Ports |
2POTS + 4GE + 2.4G/5G Wi-Fi + 1USB |
|
Indicators |
POWER/PON/LOS/TEL/LAN/WLAN/ WPS/USB |
Smart interconnection
● Smart Wi-Fi coverage
● SIP/H.248 auto-negotiation
● Any port any service
● Parental control
● L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
Smart service
● Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
● Association of one account with two POTS ports
Layer 3 Features
● PPPoE/Static IP/DHCP
● NAT/NAPT
● Port forwarding
● ALG, UPnP
● DDNS/DNS server/DNS client
● IPv6/IPv4 dual stack, and DS-Lite
● Static/Default routes
● Multiple services on one WAN port
