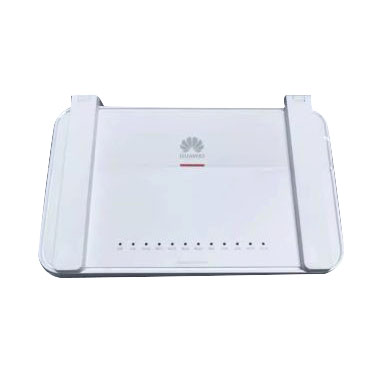

The HN8145XR DUAL BAND WIFI6 XG-PON FTTR offers an all-optical home solution, which uses XG-PON or asymmetric 10G EPON technology to achieve ultra-broadband access for users, and provides users with Gigabit dual-band Wi-Fi 6 and downlink optical ports.
|
Item |
Specifications |
|
Model |
HN8145XR |
|
User-side Ports |
1 x POTS + 4 x GE + 1 x USB + 2.4G/5G 11ax Wi-Fi 6 |
|
Max. power consumption |
20 W |
|
Network-side Port |
XG-PON |
|
Asymmetric 10G EPON |
|
|
Working environment |
Operating temperature: 0ºC to 40ºC |
|
Environment humidity: 5% to 95% (noncondensing) |
|
|
Power specifications |
Power adapter input: 170 ～ 240 V AC，50/60 Hz |
|
System power supply: 12V DC, 2 A |
|
|
WLAN |
2×2 MIMO（2.4G&5G） |
|
IEEE 802.11 ax (2.4G&5G) |
|
|
WMM(Wi-Fi Multi Media) |
|
|
Antenna gain: 5 dBi |
|
|
Air interface rate: 574 Mbit/s (2.4G), 2402 Mbit/s (5G) |
|
|
Dimensions (length x width x height) |
240mm x 151mm x 40mm |
|
Weight |
About 400 g |
● User-side interfaces
1Phone + 4GE + 1USB + 2.4G &5G Wi-Fi 6+1 optical port
● True Gigabit Wi-Fi
The next-generation Wi-Fi 6 wireless technology supports 2X2 MIMO (2.4GHz&5GHz) and 160MHz bandwidth, with a physical air interface rate of up to 3000Mbps
● 10 trillion uplink
10 Gigabit uplink access, which works with slave FTTR to achieve fiber-to-the-room, realizes true gigabit network in each room
● Seamless roaming
It supports switching between different FTTRs, with no service interruption and a roaming handover time < 50 ms>
● One-click acceleration
It can realize 60+ APP recognition such as live broadcast and video, and one-click acceleration
● One-click management
Remote network visualization, one-click optimization, parental management and other intelligent operation and maintenance functions can be carried out through the APP
