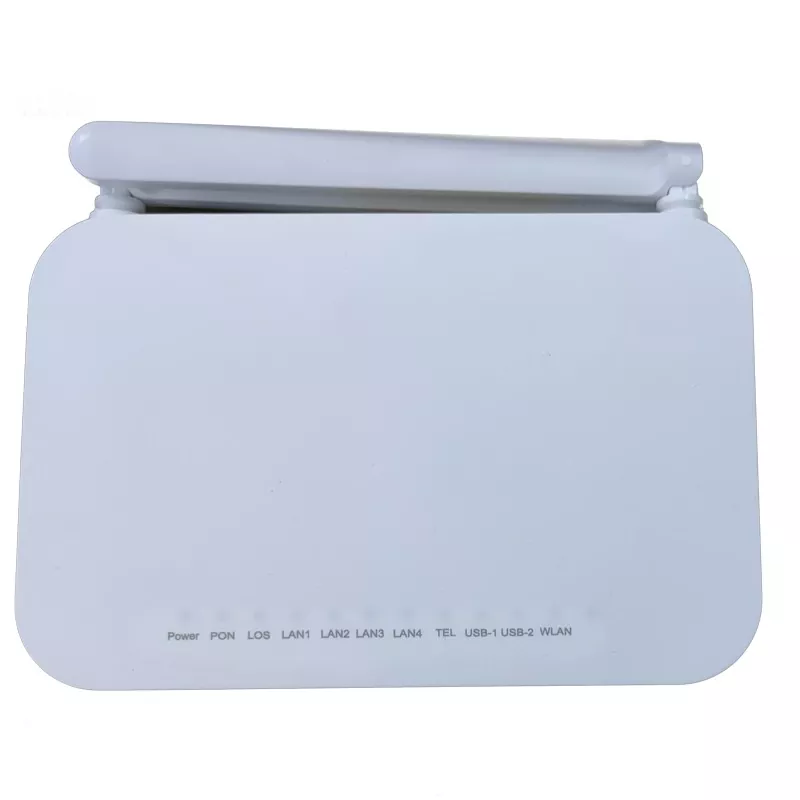

The TENKILOMETERS supplier’s HN8346X6 DUAL BAND WIFI6 XG-PON ONU ONT FTTH is a Wi-Fi 6 10 Gigabit ONT of Huawei’s all-optical access solution, which realizes users’ ultra-broadband access through XG-PON or asymmetric 10G EPON technology. Provides 4 Gigabit Ethernet interfaces, 1 POTS voice interface, 2 USB interfaces, 1 2.4G Wi-Fi interface and 5G Wi-Fi interface, effectively guaranteeing voice, data and 4K/VR through high-performance forwarding capabilities Provide customers with ideal all-optical access solutions and future-oriented business support capabilities.
|
Parameters |
HN8346X6 |
|
Weight (Without Power Adapter) |
Approximately 400 g |
|
Operating Temperature |
0–40°C |
|
Operating Humidity |
5–95% RH (non-condensing) |
|
Power Adapter Input |
100–240 V AC, 50/60 Hz |
|
System Power Supply |
11–14 V DC, 1.5 A |
|
UNI |

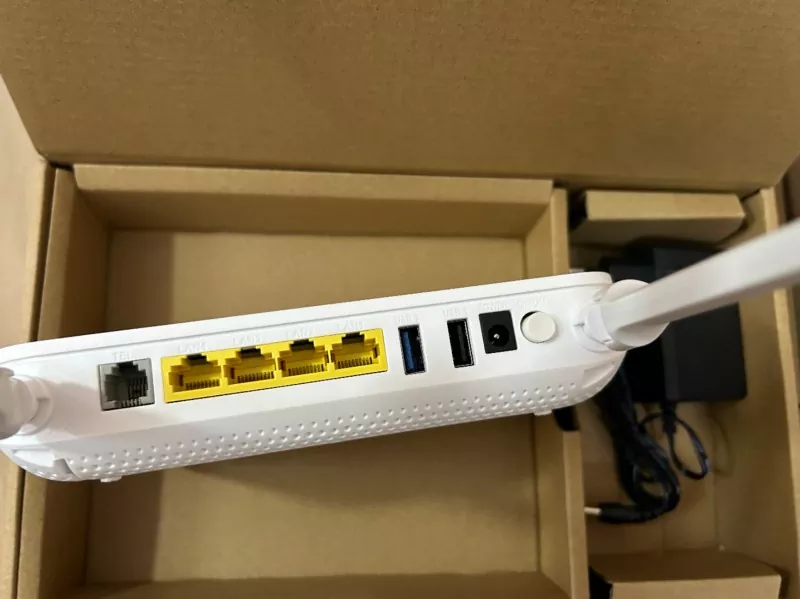

4 x GE, 1 x POTS, 1 x USB, 2.4G/5G Wi-Fi 6 |
|
NNI |
XG-PON |
|
Maximum Power Consumption* |
18 W |
|
Antenna |
External antenna |
|
Installation Mode |
Desktop |
|
Dimensions (H x W x D) |
40 x 185 x 120 mm (without external antenna and pads) |
Optical fiber interface: SC/UPC
XG-PON: Class N1/N2a/E1
Asymmetric 10G EPON: Class PRX 30
Receiving sensitivity:
XG-PON: -28dBm
Asymmetric 10G EPON: -28.5dBm
wavelength:
Upstream 1260-1280nm, downstream 1575-1580nm (XG-PON/asymmetric 10G EPON)
Support band stop filter (WBF)
Flexible mapping between GEM Port and TCONT
verification method:
SN/Password/SN + Password/ OMCI-based mutual authentication (XG-PON);
MAC/Key/LOID (asymmetric 10G EPON)
Support upstream and downstream FEC (Forward Error Correction)
DBA supporting SR and NSR
Uplink and downlink rate:
Upstream 2.5Gbps, downstream 10Gbps (XG-PON);
Upstream 1.25Gbps, downstream 10Gpbs (asymmetric 10G EPON)
IEEE 802.11 b/g/n/ax(2.4G)
IEEE 802.11 a/n/ac/ax(5G)
2×2 MIMO (2.4G&5G)
Antenna gain: 5dBi
WMM (Wi-Fi Multi Media)
Multiple SSID
