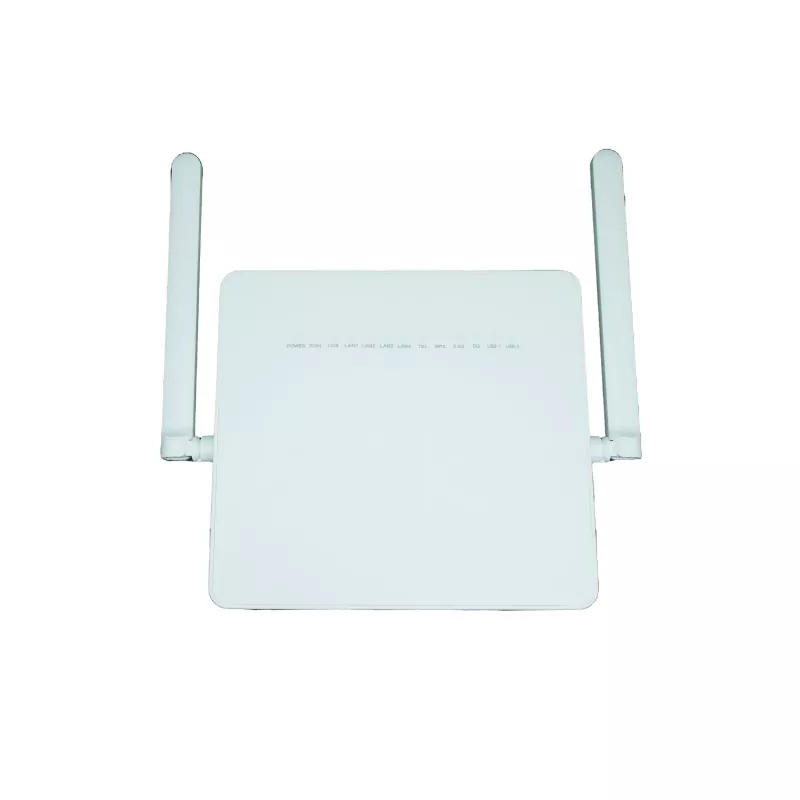

The TENKILOMETERS cheap HS8546V5 Dual Band Wifi5 XPON ONU ONT 2019 is a routing-type ONT in the all-optical access solution. The product uses the GPON technology to implement ultra-broadband access for users. At the same time, HS8546V5 provides 4 GE+1 POTS+1 USB+2 WiFi(4 GE ports, 1 POTS port, 1 USB port, 1 2.4G WiFi port and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
|
Model |
HS8546V5 |
|
Type |
Routing |
|
Dimensions (H x W x D) |
173 mm x 120 mm x 30 mm (without antenna and pads) |
|
Operating Temperature |
0°C to 40°C |
|
Operating Humidity |
5% RH to 95% RH (non-condensing) |
|
Power Adapter Input |
100V to 240V AC, 50 Hz/60 Hz |
|
System Power Supply |
11V to 14V DC, 2A |
|
Network-side Ports |
GPON |
|
User-side Ports |
1 POTS + 4 GE + Wi-Fi + USB |
|
Indicators |
POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS |
● Smart interconnection
Smart Wi-Fi coverage
SIP/H.248 auto-negotiation
Any port any service
Parental control
L2/L3(IPv4) forwarding: 1G uplink, 2G downlink
● Smart service
Scheduled Wi-Fi shutdown
Smart Wi-Fi sharing: Portal/802.1x authentication SoftGRE-based sharing
● Layer 3 Features
PPPoE/Static IP/DHCP
NAT/NAPT
Port forwarding
ALG, UPnP
DDNS/DNS server/DNS client
IPv6/IPv4 dual stack, DS-Lite, and IPv6 SPI
Static/Default routes
Multiple services on one WAN port
