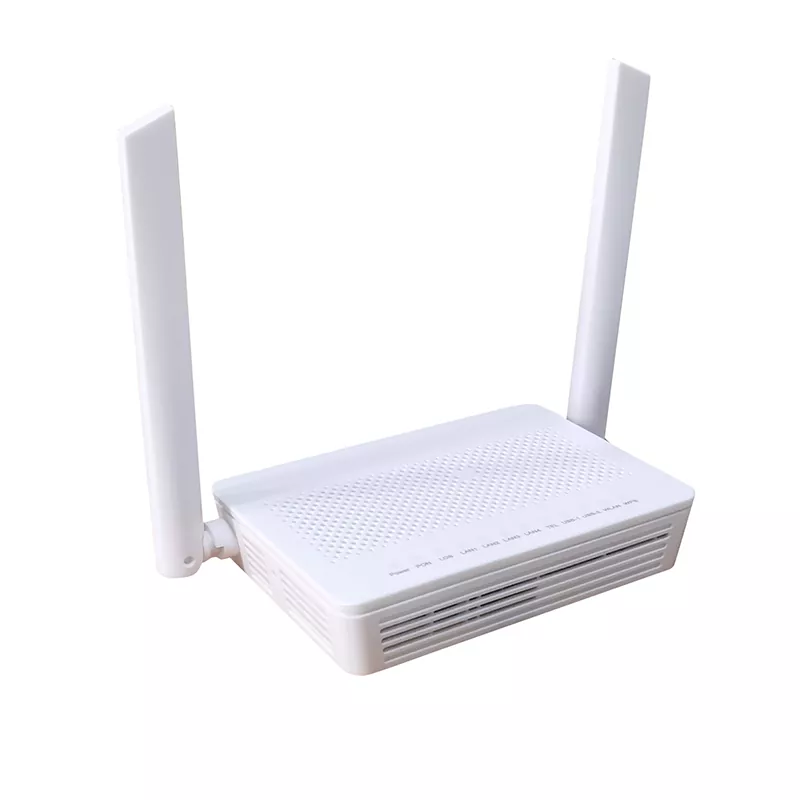

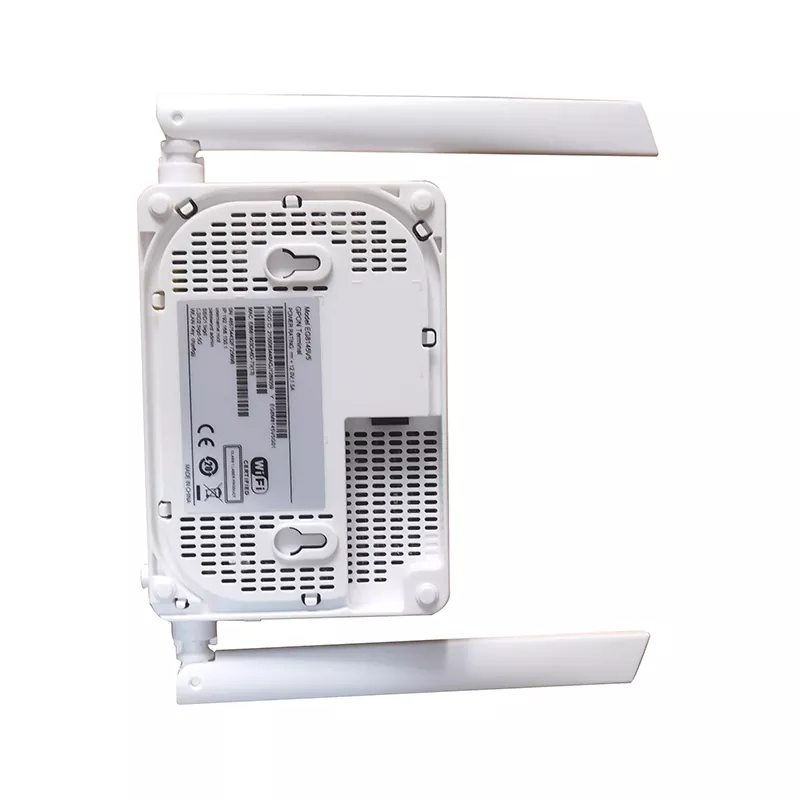

The TENKILOMETERS high quality HS8546V5 Dual Band Wifi5 XPON ONU ONT 2020 is a smart gateway device for the gigabit fiber smart home solution built by for China Mobile. It provides 1 POTS voice interface, 4 GE/FE adaptive Ethernet ports and dual-band Wi-Fi (2.4GHz & 5GHz) , Flexible application, support plug and play, remote diagnosis, green energy saving and other features. HS8546V5 supports GPON and EPON technologies to realize ultra-broadband access for home users in FTTH networking scenarios. Its high-performance forwarding capability effectively guarantees the service experience of voice, data and high-definition video, and provides an ideal terminal solution and orientation for FTTH deployment. Future business support capabilities.
|
Model |
HS8546V5 |
|
Working environment |
Operating temperature: 0ºC to 40ºC |
|
Environment humidity: 5% to 95% (noncondensing) |
|
|
Typical power consumption |
8 W |
|
Power specifications |
Power adapter input: 100 to 240 V AC, 50–60 Hz |
|
System power supply: 11–14 VDC, 2 A |
|
|
WLAN |
2.4GHZ: 802.11n 5GHZ: 802.11ac |
|
Network-side Port |
GPON |
|
User-side Ports |
1 x POTS + 4 x GE + 2.4G/5G Wi-Fi + 1 x USB |
|
Indicators |
POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB |
|
Dimensions (length x width x height) |
173 mm x 120 mm x 30 mm |
|
Weight |
About 1 Kg |
● Interface type: 1POTS+4GE+1USB+ dual-band (2.4GHz & 5GHz) Wi-Fi.
● Flexible application: PC, STB and other home terminals can be arbitrarily interpolated on the Ethernet port; SIP and H.248 are supported by both protocols, and it is convenient to interface with soft switches.
● Plug and Play: Supports remote automatic distribution of voice, broadband, and multicast services through the OMCI protocol and TR069, without on-site configuration.
● Remote diagnosis: support POTS port line test, call simulation, PPPoE dial-up simulation, easy remote fault location.
● Green energy saving: It adopts high integrated SOC chip, and integrates PON, voice, gateway and LSW modules on a single chip, saving 25% energy.
