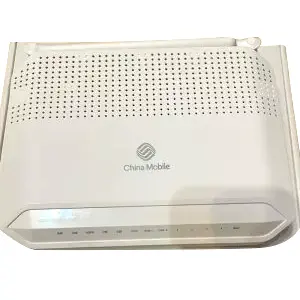

The HS8346X6 DUAL BAND WIFI6 GPON ONU ONT FTTH is an intelligent Wi-Fi 6 routing-type Optical Network Terminal (ONT). This model uses Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance — ensuring an exceptional experience for voice, data, and High Definition (HD) video services — as well as future-oriented service support capabilities and visualized network management, HS8346X6 helps enterprises construct powerful all-optical access solutions.The device features four GE ports, one POTS port, and one USB port, and 2.4G and 5G Wi-Fi connectivity.
|
Model |
EG8145X6 |
|
Dimensions (H x W x D) |
35 x 195 x 125 mm (without external antenna and pads) |
|
Weight (Without Power Adapter) |
Approximately 372 g |
|
Operating Temperature |
0–40°C |
|
Operating Humidity |
5–95% RH (non-condensing) |
|
Power Adapter Input |
100–240 V AC, 50/60 Hz |
|
System Power Supply |
11–14 V DC, 1.5 A |
|
UNI |
4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6 |
|
NNI |
GPON |
|
Maximum Power Consumption* |
18 W |
|
Antenna |
External antenna |
|
Installation Mode |
Desktop |
|
POTS Port |
• Maximum REN: 4 |
|
• G.711A/μ, G.729a/b, and G.722 encoding/decoding |
|
|
• T.30/T.38/G.711 fax mode |
|
|
• DTMF |
|
|
• Emergency calls (with the SIP protocol) |
|
|
USB Port |
• USB 2.0 |
|
• FTP-based network storage |
|
|
• File/Print sharing based on SAMBA |
|
|
• DLNA function |
|
|
Power Saving |
COC V7 |
Class B+
Receiver sensitivity: –27 dBm to –29 dB
Overload optical power: –8 dBm
Wavelengths: US 1310 nm, DS 1490 nm
Wavelength Blocking Filter (WBF) of G.984.5
Flexible mapping between the GEM port and TCONT
GPON: consistent with the SN or password authentication defined in G.984.3
Bi-directional FEC
SR-DBA and NSR-DBA
Type B (single-homing and dual-homing)
Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
Limit on the number of learned MAC addresses
MAC address learning
Auto port speeds (10/100/1000 Mbit/s)
Maximum REN: 4
711A/μ, G.729a/b, and G.722 encoding/decoding
30/T.38/G.711 fax mode
Emergency calls (with the SIP protocol)
